Description:
1. P8,P10, P12, P16, P20, Available
2. Easy to install and maintenance

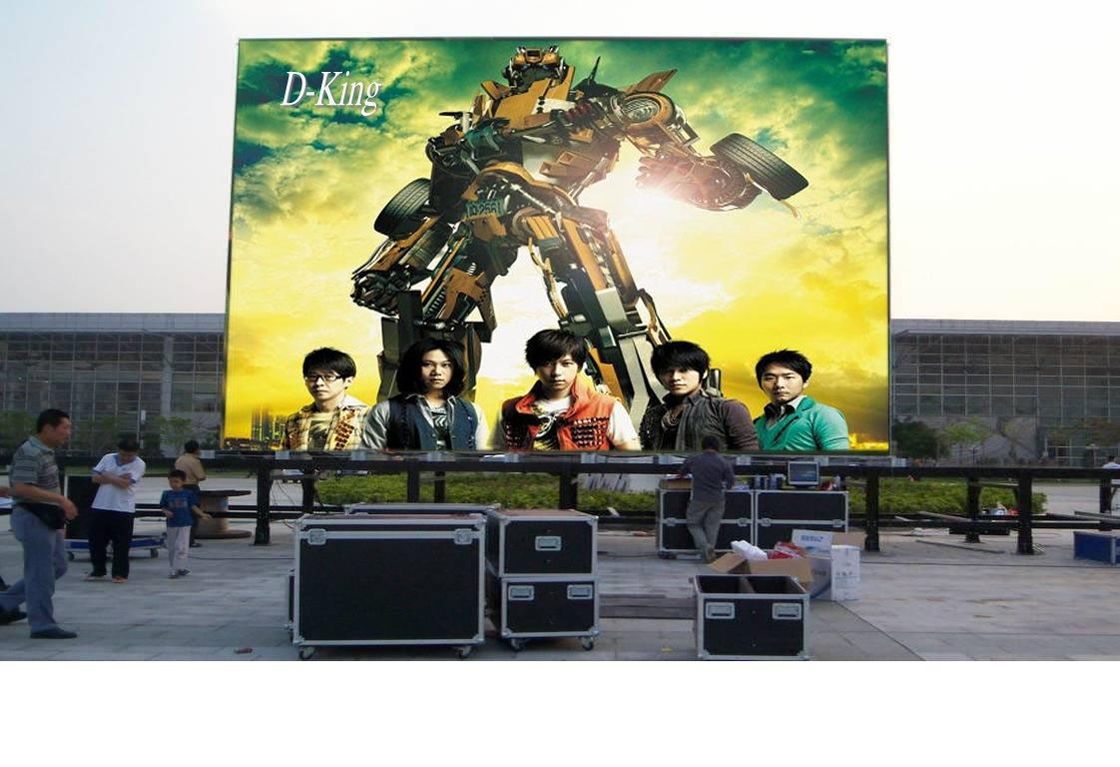

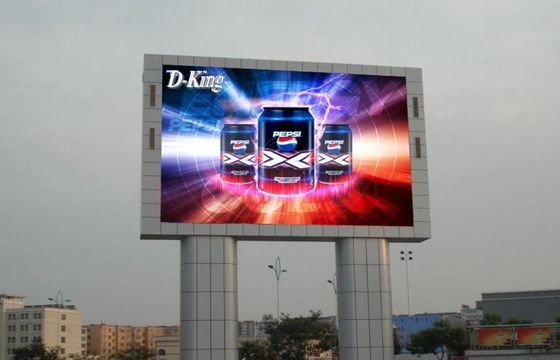

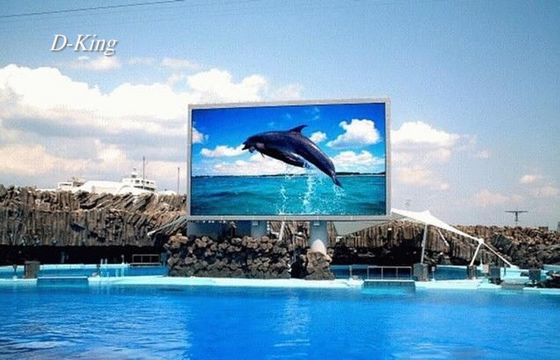

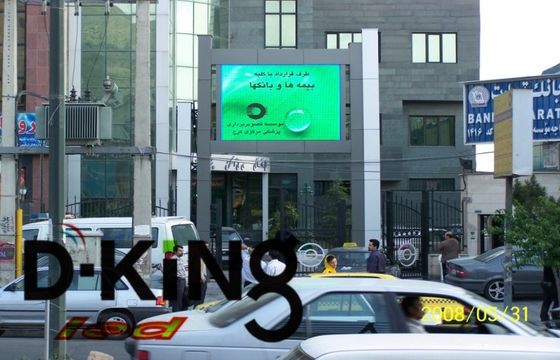

3. Widely used in indoor and outdoor advertising and media promotion, such as Exhibition, Shopping mall,Football Stadium, Party etc.
4. High quality with vivid visual effect
5. Colorful moving videos and pictures
6. Environmental-protected and saving cost
7. Good sales service
8. Prompt delivery
Features:
Durable fresh color and High brightness
· Patented design of anti-glare mask with high temperature resistant coating on the surface to absorb direct
light, reduce glare, and improve the contrast ratio of display.
· Anti-UV, anti-oxidation module prevents from deformation.
· On-site brightness and chrome calibration can recover the uniformity.
High energy efficiency
· Adopt high-brightness LED with low consumption, saving 20% power energy.
· High PFC power supply can cut 20% power consumption.
· Additional temperature, display and brightness management can also save 6% power energy.
Stability and reliability
· Precise manufacturing process keeps the modules rugged and durable.
· IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display
to work in all weather outdoor environments.
· Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity
and durability, suitable for rapid connection and high frequency use.
| LED Module Parameter | |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 16 x 16 |
| Module pixel | 20 |
| Module size (mm) | 320 x 160 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel/Iron |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2500 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥20m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m; Single mode fiber cable < 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1920 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20~+60 |
| Stored temperature (ºC) | -30~+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47~63HZ |
| Power consumption | Max: 850W ; Ave:350W |
-
