Full Color SMD1515 LED Display High Resolution Synchronous Led Screen
Full Color SMD1515 LED Display High Resolution Synchronous Led Screen
Features:
(1) Brightness Higher than 6000 cd/㎡ and adjustable
(2) High Refresh Rate reach to 3000Hz or more
(3) Long lifespan and excellent stability
(4) Customized Cabinet according to your demand
(5) Working under the temperature -30C to +75C
(6) Save 35% power than normal screens
Applications:

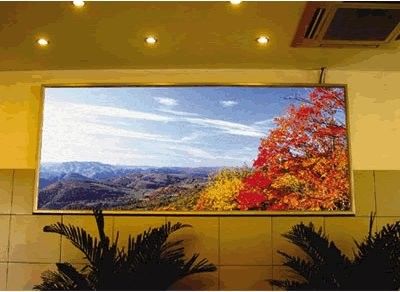

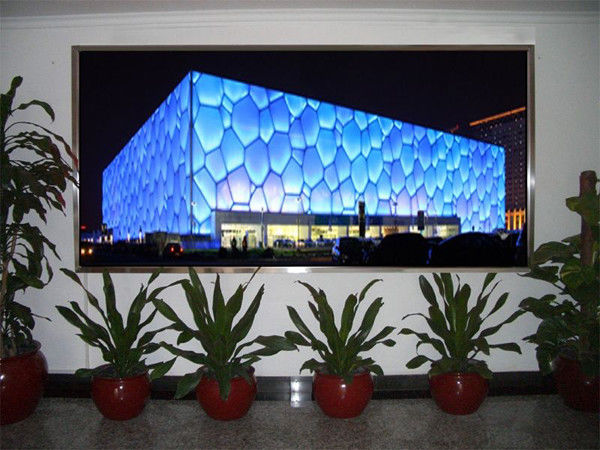

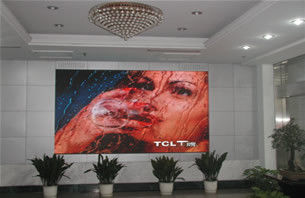

The Indoor P3 Curve LED Displays are widely used on street, building, supermarket, entertainment place, sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.
Specifications:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
SMD1515 |
45-65mcd |
120°/120° |
620-625nm |
25℃,10mA |
|
|
Green |
SMD1515 |
120-200mcd |
120°/120° |
516-530nm |
25℃,5mA |
|
|
Blue |
SMD1515 |
20-40mcd |
120°/120° |
465-475nm |
25℃,5mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
2mm |
|||||
|
Pixel Configuration |
SMD1515 |
|||||
|
Density |
250,000 pixels/m2 |
|||||
|
Module Resolution |
64pixel(L) * 64pixel(H) |
|||||
|
Module Dimension |
128mm(L) * 128mm(H) * 18mm(D) |
|||||
|
Driving Mode |
Constant current, 1/32 duty |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥1200 cd/m2 |
|||||
|
Viewing Angle |
120°(Horizontal); 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥2m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
20W |
|||||
|
Control System |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: with professional service team for 24 hours service!
