Home / Products / Football Stadium Perimeter LED Screen / P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡
Quality P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡ factory
Quality P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡ factory
Quality P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡ factory

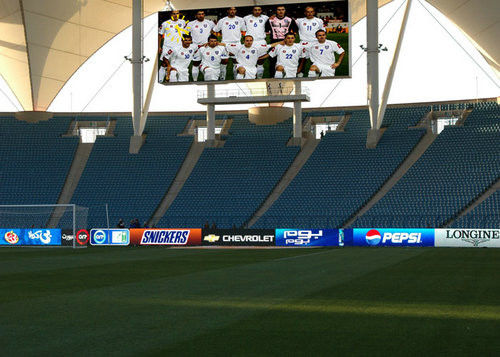

P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡

Basic Properties
Place of Origin: China
Certification: CE, CCC, FCC, ROSH, ISO9001
Trading Properties
Minimum Order Quantity: 1pcs
Price: USD 400-1999 per sqm
Payment Terms: T/T, Western Union
Supply Ability: 1300 square meters per month
Tags

sports led display

led stadium display

led perimeter display
Product Summary
P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡ Features: (1) Brightness Higher than 5000CD and adjustable (2) High Refresh Rate reach to 3000Hz or more (3) Long lifespan and stable quality (4) Special designs (5) Working under the temperature -30C to +75C (6) Save 35% power than normal screens High Brightness and Saving Engergy Outdoor HD led display leader,very mature product,each type is at least 2 years ahead of the industry. Using the high brightness led

Product Details

Highlight:

led perimeter display

,

sports led display
Brightness: 5000 Cd/㎡
Size: 160mm×160 Mm
Function: Picture/message
Tech: SMD
Feature: Full Color
Pixels: P10
Screen Dimension: 1024x768mm For Each Cabinet
Product Description

P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡





Features:



(1) Brightness Higher than 5000CD and adjustable

(2) High Refresh Rate reach to 3000Hz or more

(3) Long lifespan and stable quality

(4) Special designs

(5) Working under the temperature -30C to +75C

(6) Save 35% power than normal screens



High Brightness and Saving Engergy



Outdoor HD led display leader,very mature product,each type is at least 2 years ahead of the industry. Using the high brightness led light with the lowest consumption, saving engergy ≥30%, with 28 core technologypatent, whole saving engergy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it possible for customer to upgrade the screen to smaller pixel pitch,Increase the secondary marketing opportunity and maintain good relationship.





Support Format Low Cost Installation



Broadct color gamut, intelligent adjustment for color temperature and brightness.Uniform color, high contrast, the picture is vivid and nature. Support main displaying format, workable for DVI HDMI 3G/HD/SD SDI display format. Modularized design,low cost for installation and maintenance, easy to operate,support hot plugging.



Double Security Strong and Flat

IP65 for rear and back side, fit for naked installation without decoration.Dual backup for power supply and system,double security. The surface is dark black, strong and flat, UV-resistancemodule components,make the screen keep flat





P10 Football Stadium Perimeter Led Screen Display Module Specification



product model AP10
point spacing 10
pixel density(dots/m2) 10000
LED packaging SMD3535
scanning mode 1/2
Module resolution 32*32
Module size(mm) 320*320

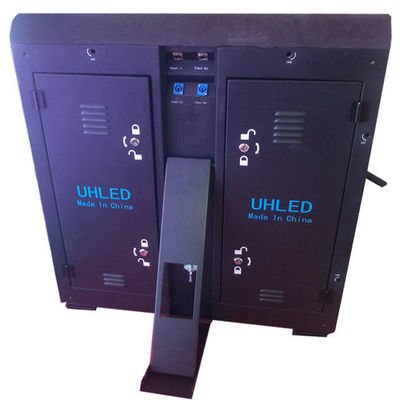

Cabinet size(mm) 1280*960
Cabinet material Aluminum
Cabinet weight(kg) 53
working voltage(V) AC220&110
maximum power consumption(W/m 2) 850
Average Power (W/m 2) 283
brightness 5500
color temperature 6500
visual angle 120
refresh rate 1000-1920
usage temperature -20℃-+50 ℃
protect grade IP65/IP54
Grayscale/color 13bit




P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡ 0P10 Football Stadium Perimeter Led Screen Synchronous 5000 cd/㎡ 1
