1500 Nits 32x32 Led Matrix Display Ultra Slim For Stadium P3.91
1500 Nits 32x32 Led Matrix Display Ultra Slim For Stadium P3.91
Description:

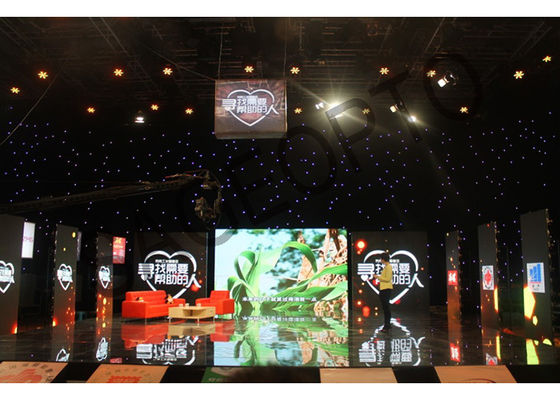

1. High definition achieve true color image , For indoor stage rental.
2. Adjustable side locks helps achieve perfectly control seamless connection.
3. Ultra slim and lightweight only 6.6KG per panel.
4. Brightness can automatical adjustment.
5. Fanless design, energy saving, more stable.Wide viewing angle 140°/140°.
6. Integrally mounted handle, easier disassembly.

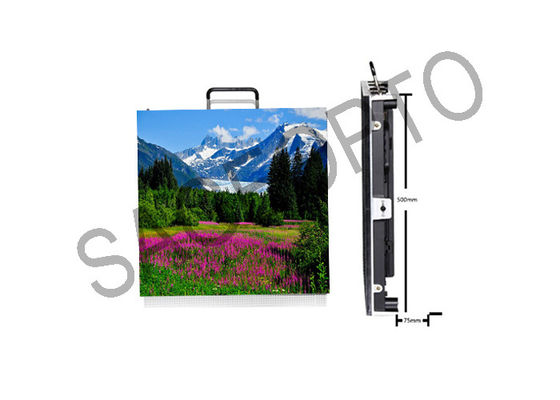

7. Standard cabinet size 500*500mm.
8. High performance and adjustable side lock, tools free.Ergonomic handle design, convenient handling.
Specifications:
| Product Series | R3.91 |
| Pixel Pitch | 3.91mm |
| Pixel Package | SMD2121 |
| LED Configuration | 1R1G1B |
| Pixel Density | 65,536 Pixels/㎡ |
| Module Size | 250mm x 250mm |
| Module Resolution | 32*32ixel |
| Suggested Cabinet Size | 500mm x 500mm x 80mm |
| Cabinet Resolution | 128 x 128 dots |
| Cabinet Material | Aluminum |
| Cabinet Weight | ＜9kg/panel |
| Brightness | 2000 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/10 |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Our Services:
1. 2years guarantee with life-time maintenance.
2. 7×24h after-sales service.
3. Free training for buyers.
4. Monthly phone call feedback.
5. Life-time system maintenance.
6. Provide local installation guidance.
