2880Hz LED Display / Modular Outdoor Led Screen Grey Level 4096-16384
2880Hz LED Display / Modular Outdoor Led Screen Grey Level 4096-16384
Modular and easy to maintain
Specifications:
| Product Series | R3.91 |
| Pixel Pitch | 3.91mm |
| Pixel Package | SMD2121 |
| LED Configuration | 1R1G1B |
| Pixel Density | 65,536 Pixels/㎡ |
| Module Size | 250mm x 250mm |
| Module Resolution | 64 x 64 dots |
| Suggested Cabinet Size | 500mm x 500mm x 80mm |
| Cabinet Resolution | 128 x 128 dots |
| Cabinet Material | Aluminum |
| Cabinet Weight | ＜9kg/panel |
| Brightness | 2000 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/10 |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Applications:

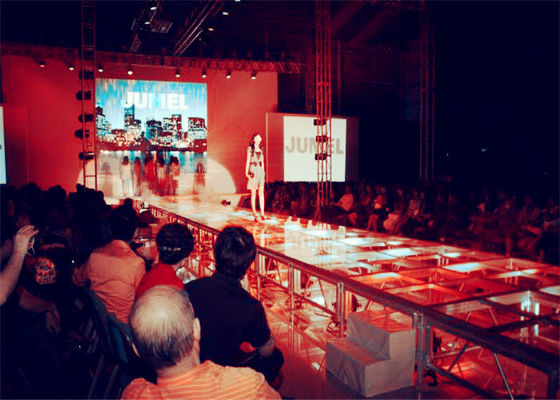

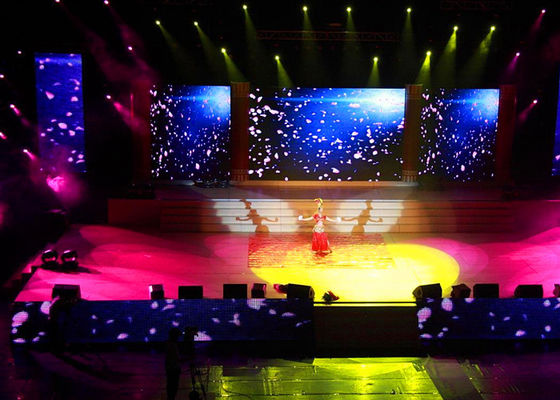

Traffic sign industry,Stage events,Shopping mall,Concerts,Electricity, water conservation industry Security industry,Military industry,Conference system Broadcasting industry,Rental.
Our Services:
1. 2years guarantee with life-time maintenance.
2. 7×24h after-sales service.
3. Free training for buyers.
4. Monthly phone call feedback.
5. Life-time system maintenance.
6. Provide local installation guidance.
Cost Saving for Installation and Maintenance
Fast locks design, cabinets can be easily assemblied in 7 seconds.
Dual-maintenance, no need fan, noiseless, low power comsumption.
Vertical / Horizontal viewing angle 160 degree.
Calibration for high quality picture.
