1000W / 400W Football Stadium Perimeter Led Screen IP65 8000 cd/㎡
1000W / 400W Football Stadium Perimeter Led Screen IP65 Waterproof P16mm
Quick Detail:
(1) Brightness Higher than 5000CD and adjustable
(2) High Refresh Rate reach to 3000Hz or more
(3) Long lifespan and stable quality
(4) Special designs
(5) Working under the temperature -30C to +75C
(6) Save 35% power than normal screens
Applications:

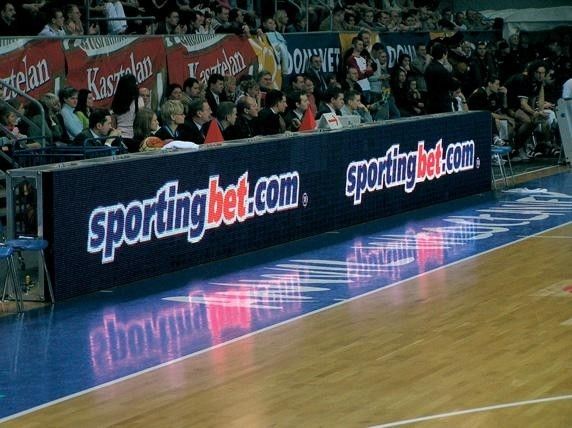

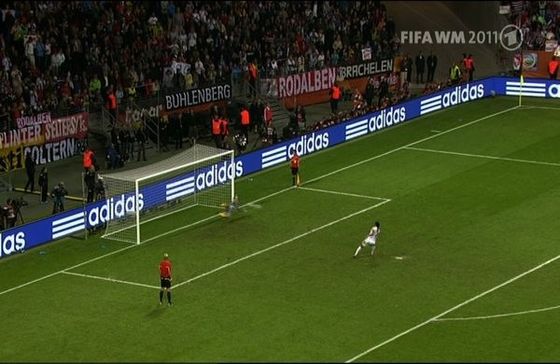

The Outdoor P16 Sports Parameters LED Displays are widely used on indoor and outdoor sports field for advertising.
For example, basketball, baseball, football..
Specifications:
|
OUTDOOR P16 DIP SPORT PERIMETER DISPLAY |
|
|
Product type |
P16 |
|
Pixel Pitch |
16mm |
|
Brightness |
≥8000 cd/㎡ |
|
LED type |
DIP346 |
|
Color Temperature |
6500K |
|
Pixel configuration |
1R1G1B |
|
Viewing angle |
Horizontal 120°/Vertical50° |
|
Refresh frequency |
≥3000Hz |
|
Power(Max/Average)/M2 |
1000W/400W |
|
Module size |
256mm×256mm |
|
Cabinet size |
1024 mm×1024 mm× 150 mm |
|
Weight |
65Kg/m² |
|
Control method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh frequency |
≧ 400Hz,Max 2000Hz |
|
Gray level |
≧ 4K |
|
Working temperature |
-10 OC — +45 OC |
|
Work voltage |
AC220V±10%；50Hz(AC110V) |
|
Video Interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI,etc. |
|
Communication distance |
Network cable ≤100m；Multimode Fiber ≤500m；Single mode fiber ≤10Km |
|
Service lige |
100,000 Hours |
|
Malfunction dot rate |
<0.1‰ |
|
Control system |
LED special video card+professional LED Control system |
2. Customized cabinet size,quick assemble and disassemble;
3.High gray scale,high brightness and high refresh rate,make great image and videos;
4. Soft mask design and Foam Top,High protection grade.
