1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module
|
1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module
| MOQ: | 1pcs |
| Price: | USD 400-1999 per sqm |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1300 square meters per month |
led video screen hire
,led screen rental
1200nits Mobile Led Screen Hire Pixel Pitch 3MM Smd Led Display Module
Description:
Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.
1. Frame supports different model(pixel pitch)of modules, increasing the investment return by 30%.
2. fast locks with adjustment function for the seamless between panels.
3. The outer lines can be through the side of the panels, tidier.
4. LED module connects to frame through magnet adsorption.
5. Large viewing angle: 140°/140°(horizontal/vertical).
6. Modules can be added to frame in any order.
7. Die-casting aluminum.
Specifications:
| Product Series | R3 |
| Pixel Pitch | 3mm |
| Pixel Package | SMD2121 |
| LED Configuration | 1R1G1B |
| Pixel Density | 111111 Pixels/㎡ |
| Module Size | 192mm x 192mm |
| Module Resolution | 64 x 64 dots |
| Suggested Cabinet Size | 576mm x 576mm x 80mm |
| Cabinet Resolution | 192 x 192 dots |
| Cabinet Material | Aluminum |
| Cabinet Weight | ＜35kg/㎡ |
| Brightness | 1200 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/16 |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 700 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Applications:

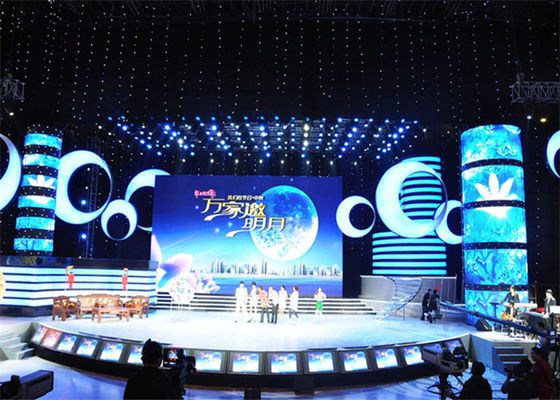

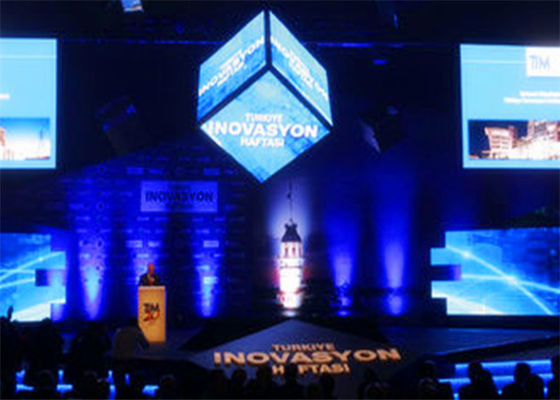

Live shows, rental events, TV studios, exhibitions.
