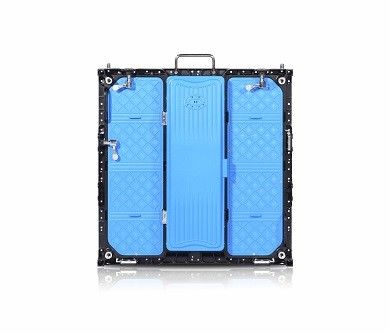

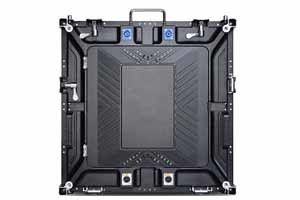

Video Wall Rental Full Color Led Screens For Events SMD3528 / SMD3030

Basic Properties
Place of Origin: China
Certification: CE, CCC, FCC, ROSH, ISO9001
Trading Properties
Minimum Order Quantity: 1pcs
Price: USD 400-1999 per sqm
Payment Terms: T/T, Western Union
Supply Ability: 1300 square meters per month
Tags

sports led display

led stadium display

led perimeter display
Product Summary
Video Wall Rental Full Color Led Screens For Events SMD3528 / SMD3030 Specifications: Suitable for different building external walls, it can manufacture according to the shape of the building facade. Match with the building design perfectly. The brightness can automatically adjust according to the using environment. Pixel Pitch 8mm Pixel Package SMD3528 /SMD3030 LED Configuration 1R1G1B Pixel Density 15625 Pixels/㎡ Module Size 256mm x 128mm Module Resolution 32 x 16 dots

Product Details

Highlight:

commercial led display

,

rgb led screen
Viewing Distance: 8-240 Meters
Refresh Rate: 1920Hz-3840Hz
Pixel Pitch: PH8mm
Encapsulation: SMD3528 / SMD3030
Cabinet: Die-casting Aluminum Alloy
Cabinet Size: 512x512mm
View Angle: 140°(Horizontal )/140°(Vertical )
LED Lifespan: 100,000 Hours
Product Description

Video Wall Rental Full Color Led Screens For Events SMD3528 / SMD3030





Specifications:



Suitable for different building external walls, it can manufacture according to the shape of the building facade. Match with the building design perfectly. The brightness can automatically adjust according to the using environment.



Pixel Pitch 8mm
Pixel Package SMD3528 /SMD3030
LED Configuration 1R1G1B
Pixel Density 15625 Pixels/㎡
Module Size 256mm x 128mm
Module Resolution 32 x 16 dots
Suggested Cabinet Size 512mm x 512mm x 70mm
Cabinet Resolution 64 x 64dots
Cabinet Material Die-casting Aluminum Alloy
Cabinet Weight5 .5 kg/panel
Brightness 1000-3000 nits
Color Temperature 3000-12000K
Viewing Angle H-140°/ V-140°
Driving Mode 1/8
Refresh Rate 1920-3840Hz
Frame Frenquency 60Hz
Grey Level 4096-16384
Number of Color 1 billion
Input Maximum Power 1100 W/㎡
Input Voltage AC220±10%, AC110 ±10%
Input Frequency 50-60Hz
External Interface S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc
IP Rating IP43

Video Wall Rental Full Color Led Screens For Events SMD3528 / SMD3030 0

1. After-sales service:



1) Service principles: response in time, solve problems as soon as possible, and ensure the use.

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After the Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips, etc.

4) Under normal use and storage, Our Company will be responsible for the equipment.



2. Pre-sales service:



1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with the client to find solutions.

2) Our company can train users based on the manual. The training includes system use, system maintenance, and equipment protection.



Video Wall Rental Full Color Led Screens For Events SMD3528 / SMD3030 1
