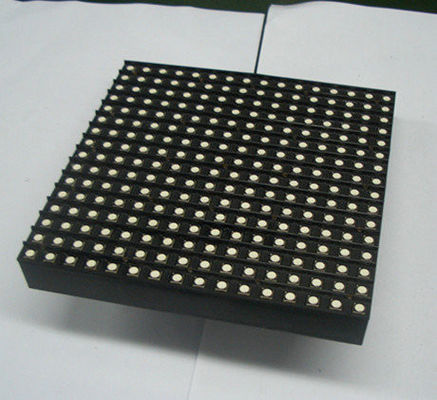

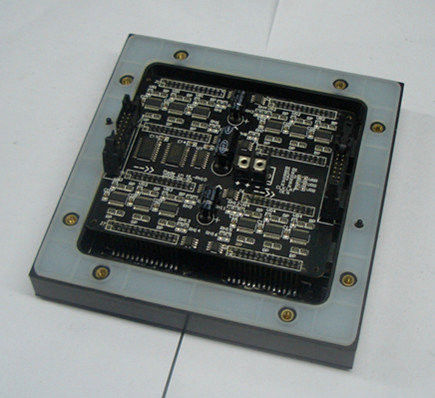

P10 Rgb Led Display Module / 16x16 Led Matrix Display SMD1515 / SMD5050
Function:
- Excellent visual effect, clear and exquisite
- Good flatness.
- Easy to clean, welding spots inoxidizable.
- Closer look available, better effects without glare and mosaic.
- Good viewing angle.
- Easy to assembly, install and transport with simple packing and convenient use.
- Vivid mixed colors.
- No color cast when look from different angles.
- Excellent heat-sinking, high stability, no scrapped lamp.
Product Application:
Wide applied in stadiums,advertisement,banks,securities exchange,stations,shoping malls,postal officees,schools,monitoring,restaurants,entertainment,enterprises etc...
Specifications:
|
Product type |
P10 |
|
Pixel pitch |
10mm |
|
Pixel constitution |
1R1G1B |
|
LED package mode |
SMD1515 / SMD5050 |
|
Pixel density |
10000dots/㎡ |
|
Scan mode |
4 |
|
Brightness |
5000cd/㎡ / 5500cd/㎡ |
|
Module resolution |
16*16 |
|
Module size |
160*160mm |
|
Max. consumption |
800W/㎡ |
|
Ave. consumption |
320W/㎡ |
|
Viewing angle |
Horizontal 120°/Vertical 100° |
|
Cabinet |
Customized (size, color, design etc.) |
|
Control Method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh Rate |
≧ 400Hz,Max. 2000Hz |
|
Grey level |
≧ 4K grade |
|
Brightness adjustment |
Manual or Auto 100 grade |
|
Working temperature |
-10 OC — +45 OC |
|
Working voltage |
AC220V±10%；50Hz(AC110V optional) |
|
Video interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc |
|
Communication distance |
Network cable≦100m; Multimode Fiber≦500m; Single mode Fiber≦10km |
|
Average fault-free |
5000hours |
|
Life span |
100000hours |
|
Defect ratio |
≦0.1‰ |
|
control system |
DVI display card + full color controller card |
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: with professional service team for 24 hours service!
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A: it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display size, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
-
