| Place of Origin: | China |
| Certification: | CE, CCC, FCC, ROSH, ISO9001 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 400-1999 per sqm |
| Packaging Details: | Flight case or wooden case |
| Delivery Time: | within 15 to 20 working days after receiving deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1300 square meters per month |
| Pixel Pitch: | PH2.5mm | Encapsulation: | SMD2121 |
|---|---|---|---|
| Color: | Full Color | Cabinet: | Die-casting Aluminum Alloy |
| Cabinet Size: | 480x480mm | View Angle: | 140°(Horizontal )/140°(Vertical ) |
| LED Lifespan: | 100,000 Hours | Working Voltage: | AC 220V/110V S±15% 50-60 HZ |
| Viewing Distance: | 2-75 Meters | ||
| High Light: | led video screen,advertising led display screen |
||

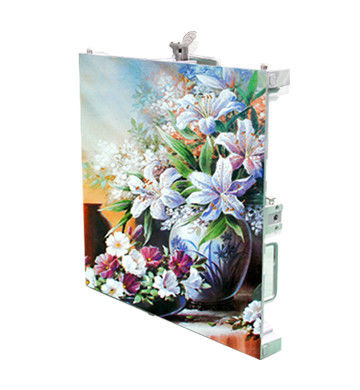

Full Color 1R1G1B LED Screen Automatic Brightness 480x480mm With Remote Control
High quality image and video presentation for large size LED billboards advertising use;
Enough brightness to deliver a clear image and video even under direct sunshine;
Automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
Remote control help to realize one computer control numbers LED screen timely;
Eye catching active advertising effect deliver to more audience and gain more revenues;
Specifications:
| Pixel Pitch | 2.5mm |
| Pixel Package | SMD2121 |
| LED Configuration | 1R1G1B |
| Pixel Density | 160000 Pixels/㎡ |
| Module Size | 160mm x 160mm |
| Module Resolution | 64 x 64 dots |

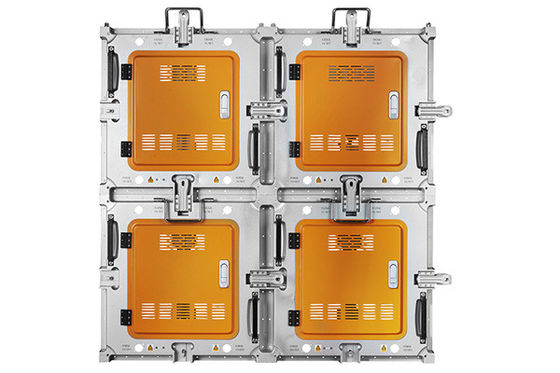

| Suggested Cabinet Size | 480mm x 480mm x 64mm |
| Cabinet Resolution | 192 x 192 dots |
| Cabinet Material | Die-casting Aluminum Alloy |
| Cabinet Weight | 7.1 kg/panel |
| Brightness | 1000-2000 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/32 |
| Refresh Rate | 1920-3840Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 1300 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Features:
1. seamless assembling, less than 1mm.
2. High-definition visual effect.
3. High thermal conductivity Alloy cabinet, better heat dissipation
4. Fan-free design, energy saving, more stable,
5. 140〫 degree wilde view angle
6. Power, signal indicators in the power box.
7. Approved by RoHS certification, Lead-free, enviromental design
8. Ergonomic handle design, convenient handling
9. High performance and adjustable side lock.
10. International standards air plug on Power connectors, easy, fast and safe.
11. Receiving card to card with LAN cable, simple, less failure rate
