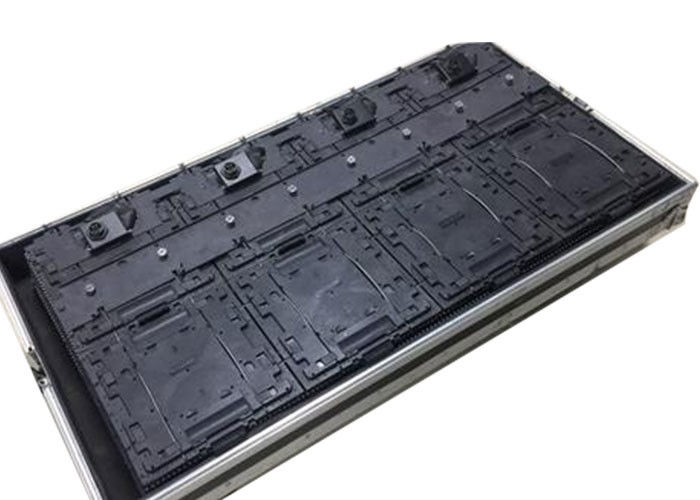

SMD3535 P6.25 Rental P6 Foldable Led Screen Full Color For Stage

Basic Properties
Place of Origin: China
Certification: CE, CCC, FCC, ROSH, ISO9001
Trading Properties
Minimum Order Quantity: 1pcs
Price: USD 400-1999 per sqm
Payment Terms: T/T, Western Union
Supply Ability: 1300 square meters per month
Product Summary
SMD3535 P6.25 Rental P6 Foldable Led Screen Full Color For Stage​ Details Description: 1. High waterproof grade IP65 With waterproof LED SMD3535, advanced gluing technology, and the LED mask with cover, the LEDs are well protect from the water, and dust. Speical cabinet design, not only have a good heat dissipation performance, but also protect the LED panel from the water and dust. 2. Super wide viewing angle (140 Degree) The SMT technology and one line chip encapsulation

Product Details

Highlight:

p6 led display

,

led matrix display

Pixel Pixth: 6.25mm
LED Type: SMD3535
Pixel Configuration: 1R1G1B
Use: Outdoor
Material: Die Casting Aluminum
Product Name: Outdoor LED Display
Brightness: 4500 Nits
Refresh Rate: 3840 Hz
Product Description

SMD3535 P6.25 Rental P6 Foldable Led Screen Full Color For Stage​





Details Description:



1. High waterproof grade IP65

With waterproof LED SMD3535, advanced gluing technology, and the LED mask with cover, the LEDs are well protect from the water, and dust. Speical cabinet design, not only have a good heat dissipation performance, but also protect the LED panel from the water and dust.



2. Super wide viewing angle (140 Degree)

The SMT technology and one line chip encapsulation optimized the viewing performance even at wide viewing angle up to 120-140 degree, the gorgeous color uniform will satisfy the nitpicker's eyes.



3. Easy maintenance

All electrical parts was connected by a driving board inside the aluminum panel, it helps to decide which part faults when problem comes out and can be replaced quickly.



4. High refresh rates and color contrast

In consider of the full range rental application even for the high end TV shows or Talks, we improved the base material supplying with all pure black color ones, it enhances the white/black color contrast greatly, further and more, we raise the refresh rates up to 4000Hz, you'll not worry about the scanning lines be watched by your living camera.



5. Convenient and Fast Installation Design

Sage adapted aviation plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.





Item Indoor LED Display
Model Number P6
Pixel Pitch 6.25mm
Pixel Density(dots/m²) 10000
Pixel Configuration 3 IN 1
LED Type SMD3528,SMD3535
Module size(mm) 320*1920
Module Resolution(dots) 32*192
Min.Viewing Distance(m) ≥10
Brightness(cd/m²) ≥2500
Viewing Angle(degree) ≤120°
Average Power Consumption(w/m²) 550-850
Scan Mode 1/8
Protection Level IP54
Cabinet Size(mm) 320*1920
Color Temperature The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Input Voltage AC220 V/50HZ or AC 110V/60HZ
Refresh Rate LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)
Color 64g color(on the condition of 4096 gray scale)
Horizontal/Vertical viewing angle <120°
Gray Scale Recommended 14BIT
Effective Communication Distance(without relay) Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.



Quick Detail:


1. ≤1mm surface level up, smooth video;



2. Perfect quality and stability, 24/7 running;



3. Front or Rear Access Service;



4. 2 years warranty, permanently repair service;



5. Long lifespan up to 100,000 hours;



6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION.



SMD3535 P6.25 Rental P6 Foldable Led Screen Full Color For Stage 0SMD3535 P6.25 Rental P6 Foldable Led Screen Full Color For Stage 1
