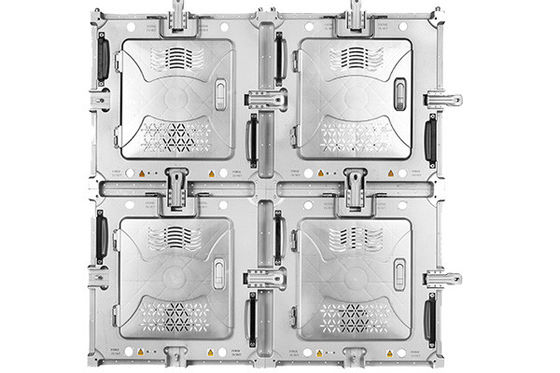

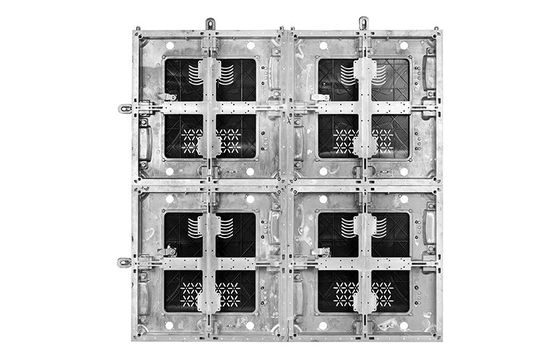

1920 - 3840Hz PH3mm P5 Super Slim Led Display 12000K For Clubs , Bars
1920 - 3840Hz PH3mm P5 Super Slim Led Display 12000K For Clubs , Bars
Application:
LED video technology integrate with stage design;
Ceiling for clubs, bars, hotels, and super malls;
Concert's background stage lighting;
Architectures decoration;
Specifications:
| Pixel Pitch | 3mm |
| Pixel Package | SMD2121 |
| LED Configuration | 1R1G1B |
| Pixel Density | 111111 Pixels/㎡ |
| Module Size | 240mm x 240mm |
| Module Resolution | 80 x 80 dots |
| Suggested Cabinet Size | 480mm x 480mm x 64mm |
| Cabinet Resolution | 160 x 160 dots |
| Cabinet Material | Die-casting Aluminum Alloy |
| Cabinet Weight | 6.8 kg/panel |
| Brightness | 1000-2000 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/16 |
| Refresh Rate | 1920-3840Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 1200 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Features:
1. seamless assembling, less than 1mm.
2. High-definition visual effect.
3. High thermal conductivity Alloy cabinet, better heat dissipation
4. Fan-free design, energy saving, more stable,
5. 140〫 degree wilde view angle
6. Power, signal indicators in the power box.
7. Approved by RoHS certification, Lead-free, enviromental design
8. Ergonomic handle design, convenient handling
9. High performance and adjustable side lock.
10. International standards air plug on Power connectors, easy, fast and safe.
11. Receiving card to card with LAN cable, simple, less failure rate
