Advertising SMD1515 LED Display Screen P8 5500cd/㎡ For Rates Showing
Advertising SMD1515 LED Display Screen P8 5500cd/㎡ For Rates Showing
1. Fast installation and dismantle with vertical and horizontal locks for the screen.
2. High contrast ratio 1:3000, refresh rate reaches to 3840Hz/s, high gray scale could provide stunning visual effect.
3. Ultra thin cabinet design, light weight, convenient to carrying on the stage rental event.
4. Uniformity display with precision metal structure, to achieve high-quality seamless effect.
High Resolution LED Screen Panel Application:
1. Indoor high definition LED Display
2. Indoor HD Rental LED Display Screen
3. Indoor HD Advertising LED Sign

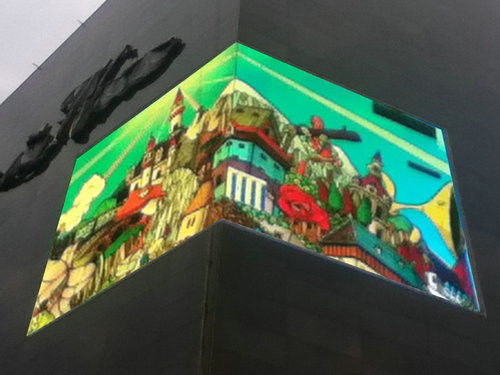

advertising LED display, shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on.
Function:
- Excellent visual effect, clear and exquisite
- Good flatness.
- Easy to clean, welding spots inoxidizable.
- Closer look available, better effects without glare and mosaic.
- Good viewing angle.
- Easy to assembly, install and transport with simple packing and convenient use.
- Vivid mixed colors.
- No color cast when look from different angles.
- Excellent heat-sinking, high stability, no scrapped lamp.
Specifications:
|
Product type |
P8 |
|
Pixel pitch |
8mm |
|
Pixel constitution |
1R1G1B |
|
LED package mode |
SMD3528/SMD1515 |
|
Pixel density |
15625dots/㎡ |
|
Scan mode |
4 |
|
Brightness |
5000 cd/㎡ / 5500cd/㎡ |
|
Module resolution |
32*16 |
|
Module size |
256*128mm |
|
Max. consumption |
1000W/㎡ |
|
Ave. consumption |
400W/㎡ |
|
Viewing angle |
Horizontal 120°/Vertical 100° |
|
Cabinet |
Customized (size, color, design etc.) |
|
Control Method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh Rate |
≧ 400Hz,Max. 2000Hz |
|
Grey level |
≧ 4K grade |
|
Brightness adjustment |
Manual or Auto 100 grade |
|
Working temperature |
-10 OC — +45 OC |
|
Working voltage |
AC220V±10%；50Hz(AC110V optional) |
|
Video interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc |
|
Communication distance |
Network cable≦100m; Multimode Fiber≦500m; Single mode Fiber≦10km |
|
Average fault-free |
5000hours |
|
Life span |
100000hours |
|
Defect ratio |
≦0.1‰ |
|
control system |
DVI display card + full color controller card |
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: with professional service team for 24 hours service!
