5000 Cd/㎡ SMD1515 LED Display P6 192*96mm For Information Showing
5000 Cd/㎡ SMD1515 LED Display P6 192*96mm For Information Showing
Quick Detail:
1) Magnetic cabinet, both front service and rear service.NO NEED big space for wall installation,take off the led cabinet from the wall at front side. 2) Perfect screen flatness, Polymeric nanocomposites cabinet.
3) Ultra thin cabinet, only 60mm thick.
4) Ultra light cabinet, only 6KG. Portable and easy to transport.
5) Die-casting aluminum cabinet, strong structure
6) Simple structure, quick installation on the spot.
7) Various kinds of applications,permanent installation, rental hanging,front service installation, creative screen installation,ceiling LED display installation and many others which you imagine.
Features:
(1) Brightness adjustable
(2) High Refresh Rate reach to 3000Hz or more
(3) Long lifespan and stable quality
(4) Working under the temperature -30C to +75C
(5) Save 35% power than normal screens
Application:

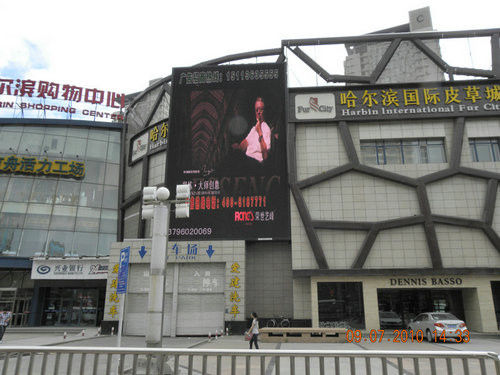

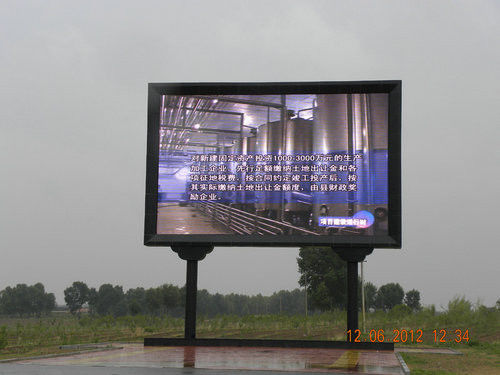

advertising LED display, shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on.
Function:
- Excellent visual effect, clear and exquisite
- Good flatness.
- Easy to clean, welding spots inoxidizable.
- Closer look available, better effects without glare and mosaic.
- Good viewing angle.
- Easy to assembly, install and transport with simple packing and convenient use.
- Vivid mixed colors.
- No color cast when look from different angles.
- Excellent heat-sinking, high stability, no scrapped lamp.
Specifications:
|
Outdoor P6 Advertising LED display(SMD) |
|
|
Product type |
P6 |
|
Pixel pitch |
6mm |
|
Pixel constitution |
1R1G1B |
|
LED package mode |
SMD1515 |
|
Pixel density |
27777dots/㎡ |
|
Scan mode |
4 |
|
Brightness |
> 5000 cd/㎡ |
|
Module resolution |
32*16 |
|
Module size |
192*96mm |
|
Max. consumption |
1000W/㎡ |
|
Ave. consumption |
400W/㎡ |
|
Viewing angle |
Horizontal 120°/Vertical 100° |
|
Cabinet |
Customized (size, color, design etc.) |
|
Control Method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh Rate |
≧ 400Hz,Max. 2000Hz |
|
Grey level |
≧ 4K grade |
|
Brightness adjustment |
Manual or Auto 100 grade |
|
Working temperature |
-10 OC — +45 OC |
|
Video interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc |
|
Average fault-free |
5000hours |
|
Life span |
100000hours |
|
Defect ratio |
≦0.1‰ |
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: 24/7 professional after sales service, and on-site service is available.
