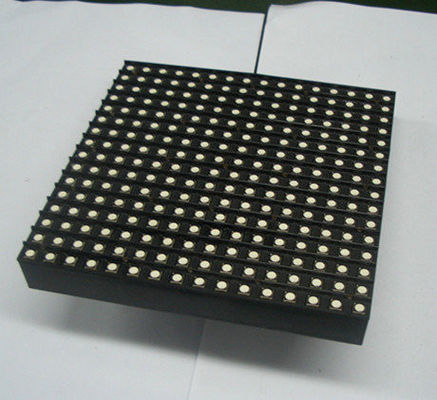

Outdoor SMD 3535 LED Screen 160*160mm 5000cd/㎡ P10 Rgb Smd Led Module
Outdoor SMD 3535 LED Screen 160*160mm 5000cd/㎡ P10 Rgb Smd Led Module
Product Feature:
1) High quality LED chip and high anti-static electricity capacity.
2) Use pure copper power supply wire and copper wire arrangement, stability and long service life.
3) Large viewing angle and smooth displaying provide excellent visual effect from every angle.
4) Ultra high brightness, low attenuation, high reliability and weather ability.
5) High refresh rate, high gray scale, ghost-canceling, low power consumption.
6) It can be designed and maintained on the front and back, easy and fast and easy to maintain.
7) Own over 100 Product patents,CE and RoHS approval.
Application:
advertising LED display, shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on.
Function:
- Excellent visual effect, clear and exquisite
- Good flatness.
- Easy to clean, welding spots inoxidizable.
- Closer look available, better effects without glare and mosaic.
- Good viewing angle.
- Easy to assembly, install and transport with simple packing and convenient use.
- Vivid mixed colors.
- No color cast when look from different angles.
- Excellent heat-sinking, high stability, no scrapped lamp.
Specifications:
|
Outdoor P10 Advertising LED display(SMD) |
|
|
Product type |
P10 |
|
Pixel pitch |
10mm |
|
Pixel constitution |
1R1G1B |
|
LED package mode |
SMD3535 / SMD5050 |
|
Pixel density |
10000dots/㎡ |
|
Scan mode |
4 |
|
Brightness |
5000cd/㎡ / 5500cd/㎡ |
|
Module resolution |
16*16 |
|
Module size |
160*160mm |
|
Max. consumption |
800W/㎡ |
|
Ave. consumption |
320W/㎡ |
|
Viewing angle |
Horizontal 120°/Vertical 100° |
|

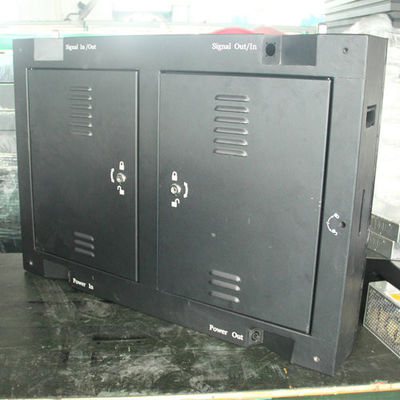

Cabinet |
Customized (size, color, design etc.) |
|
Control Method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh Rate |
≧ 400Hz,Max. 2000Hz |
|
Grey level |
≧ 4K grade |
|
Brightness adjustment |
Manual or Auto 100 grade |
|
Working temperature |
-10 OC — +45 OC |
|
Working voltage |
AC220V±10%；50Hz(AC110V optional) |
|
Video interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc |
|
Communication distance |
Network cable≦100m; Multimode Fiber≦500m; Single mode Fiber≦10km |
|
Average fault-free |
5000hours |
|
Life span |
100000hours |
|
Defect ratio |
≦0.1‰ |
|
control system |
DVI display card + full color controller card |
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: with professional service team for 24 hours service!
