Advertising Vertical 100° P6 Foldable Led Screen SMD 5000 Cd/㎡
Product Details
foldable led display
,p6 led display

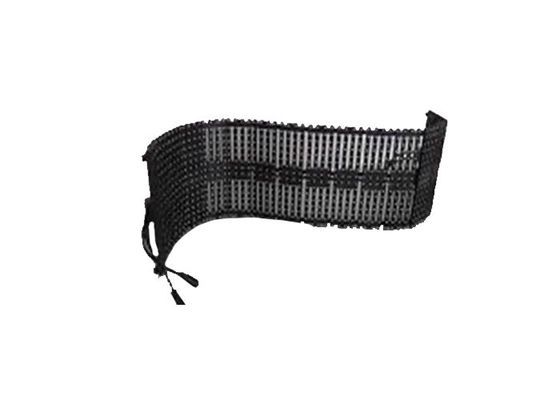

Advertising Vertical 100° P6 Foldable Led Screen SMD 5000 Cd/㎡
(1) Computer control with software
(2) High resolution, top vision
(3) Show images, videos, texts, messages......
(4) 2-5 years warranty
(5) Brightness adjustable
(6) High Refresh Rate reach to 3000Hz or more
(7) Long lifespan and stable quality
Application:
advertising LED display, shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on.
Function:
- Excellent visual effect, clear and exquisite
- Good flatness.
- Easy to clean, welding spots inoxidizable.
- Closer look available, better effects without glare and mosaic.
- Good viewing angle.
- Easy to assembly, install and transport with simple packing and convenient use.
- Vivid mixed colors.
- No color cast when look from different angles.
- Excellent heat-sinking, high stability, no scrapped lamp.
About UHLED:
We are the professional and famous Manufacturer of LED screen in Shenzhen, China. We have exported to North America, Europe, South America, Middle East, Central Asia and many other areas of the world.
UHLED has more than 500 workers and a strong R&D team with 30 employees.
Also UHLED has the DIP, SMT and other advanced equipments for high efficiency Productions.
UHLED also has a professional QC team. They will double check all the quality details before delivery.
With high quality, good reputation and competitive price, UHLED is going to achieve more in the global market.
Specifications:
|
Product type |
P6 |
|
Pixel pitch |
6mm |
|
Pixel constitution |
1R1G1B |
|
LED package mode |
SMD |
|
Pixel density |
27777dots/㎡ |
|
Scan mode |
4 |
|
Brightness |
> 5000 cd/㎡ |
|
Module resolution |
32*16 |
|
Module size |
192*96mm |
|
Max. consumption |
1000W/㎡ |
|
Ave. consumption |
400W/㎡ |
|
Viewing angle |
Horizontal 120°/Vertical 100° |
|
Cabinet |
Customized (size, color, design etc.) |
|
Control Method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh Rate |
≧ 400Hz,Max. 2000Hz |
|
Grey level |
≧ 4K grade |
|
Brightness adjustment |
Manual or Auto 100 grade |
|
Working temperature |
-10 OC — +45 OC |
|
Working voltage |
AC220V±10%；50Hz(AC110V optional) |
|
Video interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc |
|
Communication distance |
Network cable≦100m; Multimode Fiber≦500m; Single mode Fiber≦10km |
|
Average fault-free |
5000hours |
|
Life span |
100000hours |
|
Defect ratio |
≦0.1‰ |
|
control system |
DVI display card + full color controller card |
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: 24/7 professional after sales service, and on-site service is available.
