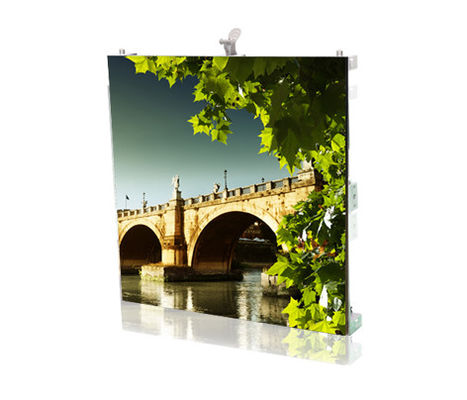

Aluminum Alloy Cabinet 1920Hz LED Display 1R1G1B For Events Hire
Aluminum Alloy Cabinet 1920Hz LED Display 1R1G1B For Events Hire
1920Hz LED Display delivers true color images and videos with high precision pixel pitch and high refresh rate, brings a great viewing experience to the audience at a close viewing distance. By providing extraordinary image quality with precise colors, small pixel pitch LED Display creates remarkable visual experiences that keep constant over time.
Specifications:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing angle |
Wavelength |
Testing condition |
|
|
Red |
SMD3535 |
800-1100mcd |
120° |
620-625nm |
25℃,20mA |
|
|
Green |
SMD3535 |
1600-2250mcd |
120° |
515-530nm |
25℃,20mA |
|
|
Blue |
SMD3535 |
350-500mcd |
120° |
465-475nm |
25℃,20mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
4mm |
|||||
|
Pixel Configuration |
SMD3535 |
|||||
|
Density |
27,778 pixels/sqm |
|||||
|
Module Resolution |
32pixel(L) * 32pixel(H) |
|||||
|
Driving Mode |
Constant current, 1/4 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|
LED Cabinet |
||||||
|
Cabinet Material |
Die Cast Aluminum |
|||||
|
Cabinet Weight |
≈12KG |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥6,500 cd/sqm |
|||||
|
Viewing Angle |
120°(Horizontal); 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥6m |
|||||
|
Display Color |
4.4 trillion colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Operation Power |
AC100-240V 50-60Hz Switchable |
|||||
|
Max. Power Consumption |
850 W/sqm |
|||||
|
Avg. Power Consumption |
280W/qsm |
|||||
|
Control System |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1,920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20~+60 ºC |
|||||
|
Storage Temperature |
-30~+70 ºC |
|||||
|
Working Humidity |
10%~90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP65(front), IP54(rear) |
|||||
Features:
1. seamless assembling, less than 1mm.
2. High-definition visual effect.
3. High thermal conductivity Alloy cabinet, better heat dissipation
4. Fan-free design, energy saving, more stable,
5. 140〫 degree wilde view angle
6. Power, signal indicators in the power box.
7. Approved by RoHS certification, Lead-free, enviromental design
8. Ergonomic handle design, convenient handling
9. High performance and adjustable side lock.

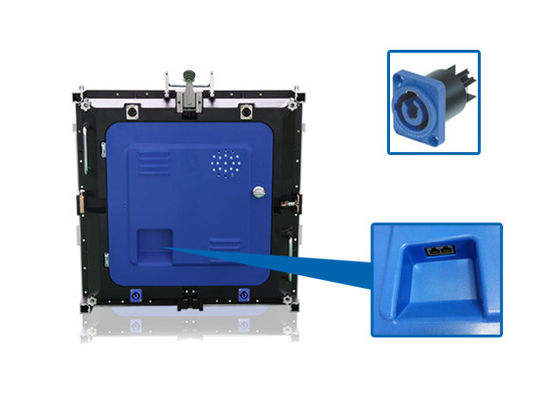

10. International standards air plug on Power connectors, easy, fast and safe.
11. Receiving card to card with LAN cable, simple, less failure rate
Payment terms:
T/T 30% down payment upon order confirmation and 70% balance in one week before shipment.
Shipment: From Shenzhen, China to unconfirmed by sea/air.
Delivery date: Within 20 working days upon receipt of 30% T/T down payment.
