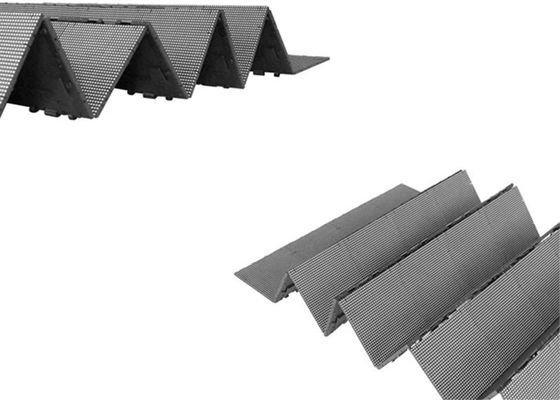

Large Rental P6 Foldable Led Screen SMD3535 Corrosion Resistance
Large Rental P6 Foldable Led Screen SMD3535 Corrosion Resistance
High Definition Image
Small physical pitch and 1500-2500 nits brightness make high definition and vivid image
Fashionable Die Casting Aluminum Body
Slim and light design for the cabinet body, with the newest lock for convenient fixation;
High Uniformity& Contrast
High quality led lamp and mask for super bright display and high contrast image;
High Refresh Rate
High refresh rate and constant current emsure the colorful aand stable playing effect;
Reliable
Over 100000 working hours for longtime use;
Multi-Control Systems
Synchronous and asynchronous systems for option.
Specifications:
| Product Series | R6.25 |
| Pixel Pitch | 6.25mm |
| Pixel Package | SMD3535 |
| LED Configuration | 1R1G1B |
| Pixel Density | 25,600 Pixels/㎡ |
| Module Size | 250mm x 250mm |
| Module Resolution | 40 x 40 dots |
| Suggested Cabinet Size | 500mm x 500mm |
| Cabinet Resolution | 80x 80 dots |
| Cabinet Material | Iron / Aluminum |
| Brightness | ＞5500 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Input Maximum Power | 250 W/panel |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP65 |
Applications:
Traffic sign industry,Stage events,Shopping mall,Concerts,Electricity, water conservation industry Security industry,Military industry,Conference system Broadcasting industry,Rental.
