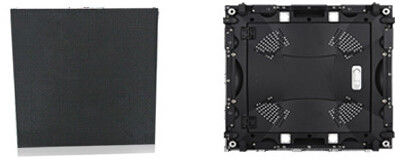

Advertising P5 Super Slim Led Display High Definition 360000dots/M2
Advertising P5 Super Slim Led Display High Definition 360000dots/M2
Product details
| Unit Module | Part No | P1.667-LC-30S |
| Pixel pitch | 1.667mm | |
| Module size | 200mm*100mm | |
| Tube chip color | full color | |
| Pixel Density | 360000dots/m2 | |
| led combination | 1R1G1B | |
| Module resolution | 128*64dots | |
| Module weight | 0.4kg | |
| main technical parameters |
Scan method | 1/30s |
| refresh rate | ≥3840Hz | |
| Brightness of white balance | ≥1200cd/m2 | |
| cabinet resolution | 256mm*192mm | |
| cabinet size | 400mm*300mm | |
| Best view distance | 2m−15m | |
| Best view angle | 160°(W)*160°(H) | |
| Storage temperature | −35℃-+85℃ | |
| Working temperature | −20℃-+50℃ | |
| working voltage | AC110/220V±10% | |
| Average power consumption | ≤233W/m2 | |
| Max power consumption | ≤900W/m2 | |
| brightness adjustment method | Brightness induction automatic adjustment |
|
| Frame Frequency | 50&60HZ | |
| Luminance Level/color | RGB256 | |
| Gray Level | 16384 grade | |
| MTBF | ≥5000hrs | |
| Control system |
Display card | DVI graphics |
| Control method | Synchronization | |
| Operation syetem | WIN98,WINXP,WIN2000,etc | |
| display sign | RF,S-Video,RGB,RGBHV,YUV, YC,COMPOSITION, etc |
Features:
1. seamless assembling, less than 1mm.
2. High-definition visual effect.

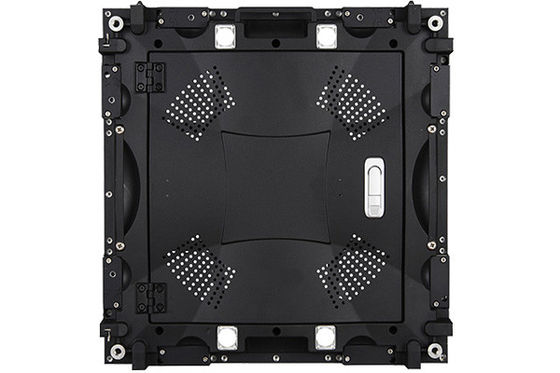

3. High thermal conductivity Alloy cabinet, better heat dissipation
4. Fan-free design, energy saving, more stable,
5. 140〫 degree wilde view angle
6. Power, signal indicators in the power box.
7. Approved by RoHS certification, Lead-free, enviromental design
8. Ergonomic handle design, convenient handling
9. High performance and adjustable side lock.
10. International standards air plug on Power connectors, easy, fast and safe.
11. Receiving card to card with LAN cable, simple, less failure rate
Training:
In order to let our customers control the system skillfully, and easily handle some basic malfunction or system failure in the operation. We offer our users a training course in the following two steps:
1. Factory training with the follow course:
- Basic computer knowledge
- Basic LED knowledge
- LED hardware structure and working principle
- Screen programming and all the software demonstration
- System daily maintenance and safety regulations
2. On-site training
- The installation of system software
- The function of apparatus in system and the method of the right usage
- The inspection, adjustment and test of apparatus and the measurement tools common use and instrumental usage
- The apparatus protection instructions
- Ordinary software & hardware malfunction disposal
