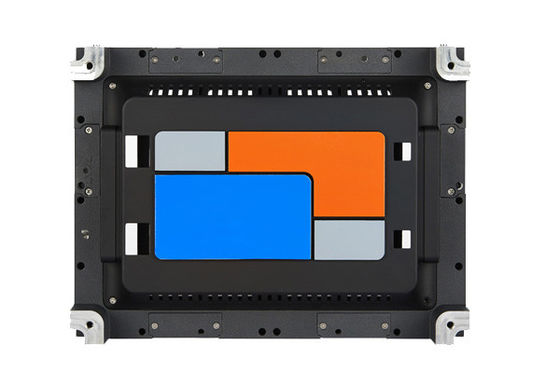

Small Pixel Pitch PH1.667mm Modular Hire Led Screen Full Color
Small Pixel Pitch PH1.667mm Modular Hire Led Screen Full Color
Features:
1. seamless assembling, less than 1mm.
2. High-definition visual effect.
3. High thermal conductivity Alloy cabinet, better heat dissipation
4. Fan-free design, energy saving, more stable,
5. 140〫 degree wilde view angle
6. Power, signal indicators in the power box.
7. Approved by RoHS certification, Lead-free, enviromental design
8. Ergonomic handle design, convenient handling
9. High performance and adjustable side lock.
10. International standards air plug on Power connectors, easy, fast and safe.
11. Receiving card to card with LAN cable, simple, less failure rate
Specifications:
| Pixel Pitch | 1.667mm |
| Pixel Package | SMD1010 |
| LED Configuration | 1R1G1B |
| Pixel Density | 359857 Pixels/㎡ |
| Module Size | 200mm x 150mm |
| Module Resolution | 120 x 90 dots |
| Suggested Cabinet Size | 400mm x 300mm x 53mm |
| Cabinet Resolution | 240 x 180 dots |
| Cabinet Material | Die-casting Aluminum Alloy |
| Cabinet Weight | 5.8 kg/panel |
| Brightness | 800-1500 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Driving Mode | 1/30 |
| Refresh Rate | 1920-3840Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Input Maximum Power | 1800 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
Payment terms:
T/T 30% down payment upon order confirmation and 70% balance in one week before shipment.
Shipment: From Shenzhen, China to unconfirmed by sea/air.
Delivery date: Within 20 working days upon receipt of 30% T/T down payment.
